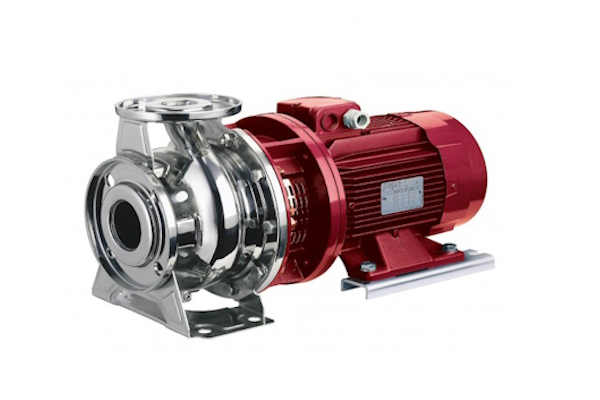

PVIENG2765409YUPOLF GTR PUMP
PVIENG2765409YUPOLF GTR PUMP series of stainless steel pumps feature a unique one piece volute casing that are produced using an advanced computer controlled plasma stamping system that ensures total quality control during manufacture (up to 65-200/22). With the smooth surfaces of stamped stainless steel, this results in consistent high standard products, of superior quality and high efficiency.
Features
- Stainless steel liquid end components
- maximum liquid temperature 110 C
- Minimum liquid tenperature -10 C
- Stub shaft design
- FL = B5 flange mount motor
- F & FL = B35 foot & flange mount motor
- High quality; corrosion resistance.
- Manufactured in Stamped 316L and Cast 316 in larger models
- High quality mechanical shaft seals and o-rings
- Fitted standard with SiC/SiC/Viton mechanical seal.
- Standard IEC motors used
- Allowing for single phase, special enclosure, or specific brand motors to be fitted.
- Close coupled design
- Saves space; simplifies maintenance and installation
- Back pullout construction
- Assembly and overhaul of the impeller and seal without disturbig suction and discharge connections
- High operating efficiency
- Lowers operating cost
- Top centerline discharge and foot support under casing
- Ensures self-venting and reduces misalignment from pipe loads
